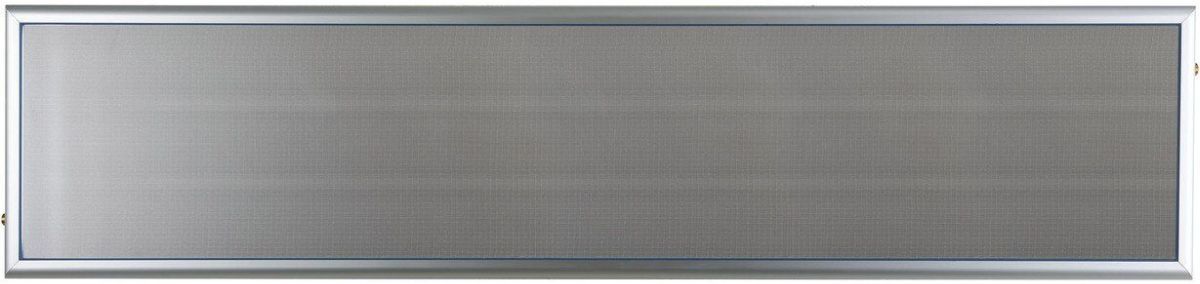

GE® GeoSpring™ Gray Internal Collector Storage Solar Water Heater

GE

Model #:

GT40C10BAM

Model #: GT40C10BAM
541686
GE
$3,500.00

At a Glance

Storage tank integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn’t shining. The pipes in the tank have a 38-gallon capacity rating, enough to satisfy the needs of the homeRead More

$3,500.00

What We Offer

Protect Your Purchase

View Options

None Selected

INSTALL QUOTE - CALL STOREFOR SELF-INSTALL - ADD TO CART

Get to know this product.

Product Overview

Product Overview

Serpentine system

Water is heated and stored directly in the solar collector, making hot water available as soon as it’s heated by the sun

One-of-a-kind design for versatile installation

Accommodate any roof style with a unit that’s easy to set up

Solar glass

Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass

Innovative frame

Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability

Internal tank coating

Resilient internal coating offers maximum corrosion resistance and trouble-free performance

Clear heat insulation

Totally transparent insulation delivers maximum heat retention

Useful Documents
Owner's Manual and Installation Instructions
Quick Reference Guide
Specifications

General Specs

Manufacturer Warranty10 Year
Capacity (gal.)38
Color Finish NameGray
ADA CompliantNo
Smart CompatibleNo
Wifi CapableNo
CollectionGeoSpring™
Product Weight (lbs.)115

Features

ConfigurationICS
Product TypeSolar
Cold/hot water connections (inches)3/4 MNPT
Collector Inclination Angle from horizontal (degrees)10 to 75
Gross area (ft)19
Heat transfer mediumWater
Max. operating pressure (psi)60
Net Collector Area (ft²)17
Thermal insulation - storage tank (inches)1.2
Volume hot water storage tank (gal)38

Weight and Dimensions

Collector outer dimensions (inches)86x33x8
Max height, mount 45/30 (inches)28/22
Weight (with mount, no water) (lb)125
Weight (with mount, with water) (lb)444
